100A Automatic Transfer Switch ATS – XL6000i – XL10000i Range Only

This 100A Automatic Transfer Switch (ATS) is a purpose-built solution for the Excel Power XL6000i and XL10000i range of inverter generators. By removing the need for manual intervention, it ensures your premises remain powered during a grid failure without you having to lift a finger.

• Capacity: 100A – Single Phase 230V
• Compatibility: Excel Power XL6000i / XL10000i only
• Enclosure: Mild steel with undrilled gland plates
• Interface: Two-wire start with full electrical schematics included

Seamless Power Restoration

Manual changeovers can be stressful and slow during a blackout. This ATS eliminates that friction by monitoring your mains supply 24/7. The moment a power failure is detected, the unit signals your XL-series generator to start. Within 8 to 10 seconds, once the generator reaches its optimal operating frequency and voltage, the switch automatically transfers your building's load to the standby power source.

Smart Grid Monitoring

Equipped with a dedicated voltage monitoring relay, the system protects your equipment from unstable power. It doesn't just react to total outages; it also provides over and under-voltage protection. When the mains power returns to a stable level, the ATS waits for a pre-set restoration timer to ensure the grid is consistent before switching back, preventing unnecessary "power cycling" of your appliances.

Automated Engine Care

To ensure longevity and reliability, the switch manages the entire lifecycle of the generator's run-time. After the mains power has been restored and the load is safely transferred back to the grid, the ATS initiates a cooling cycle for the generator. This allows the engine to run off-load for a short period to shed heat before shutting down. Additionally, the integrated battery charger keeps the generator’s starter battery topped up, ensuring it is ready for the next interruption.

Robust Hardware and Safety

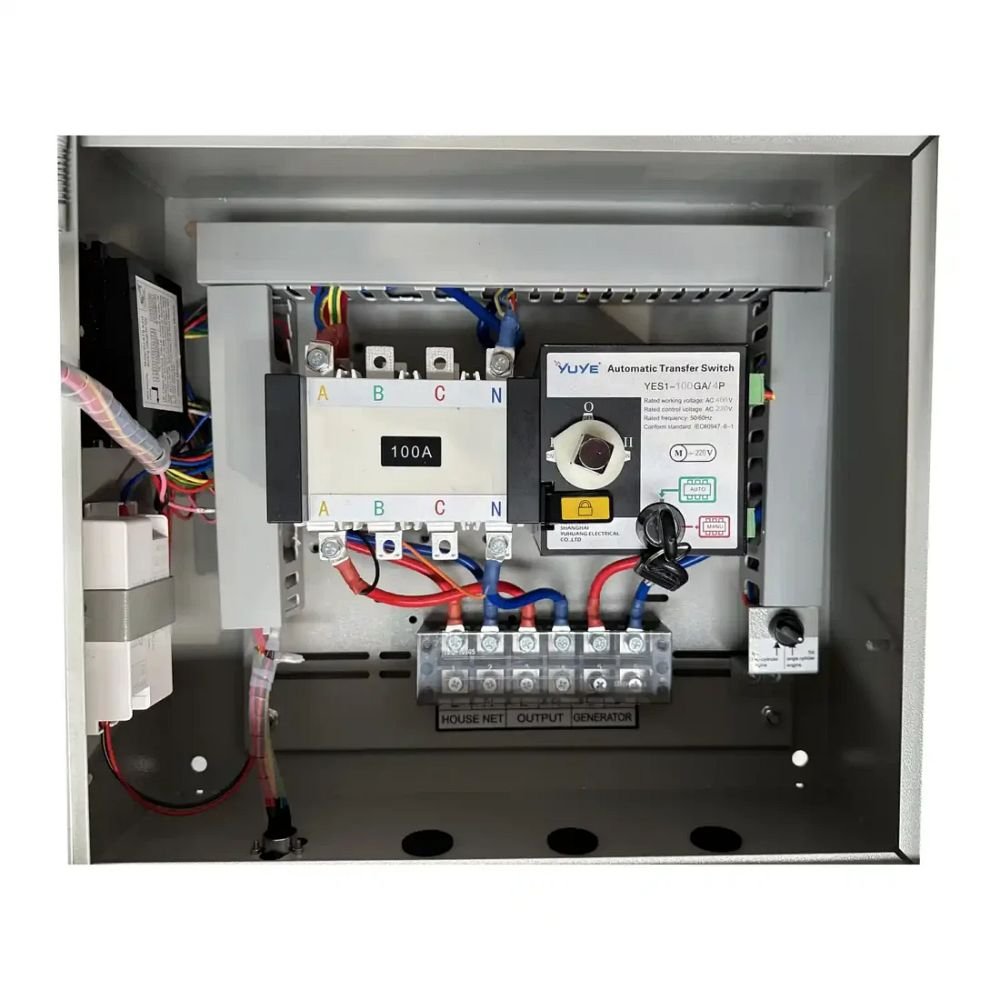

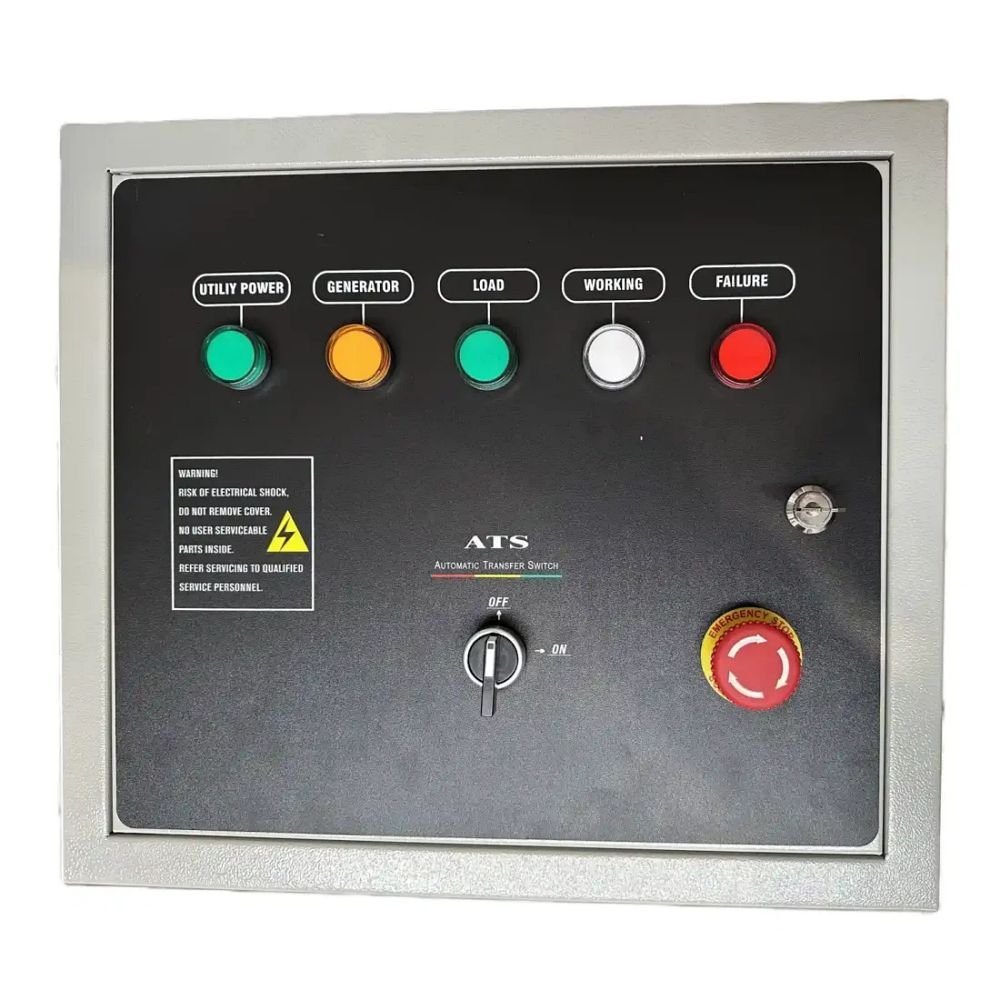

Housed in a durable mild steel enclosure, the unit features a 3-pole mechanically and electrically interlocked pair of contactors. This physical interlocking prevents the mains and the generator from ever connecting to the load simultaneously, eliminating the risk of back-feeding the grid. The front panel provides immediate visual feedback via LED indicators for "Mains On Load" and "Plant On Load" status.

Professional Integration

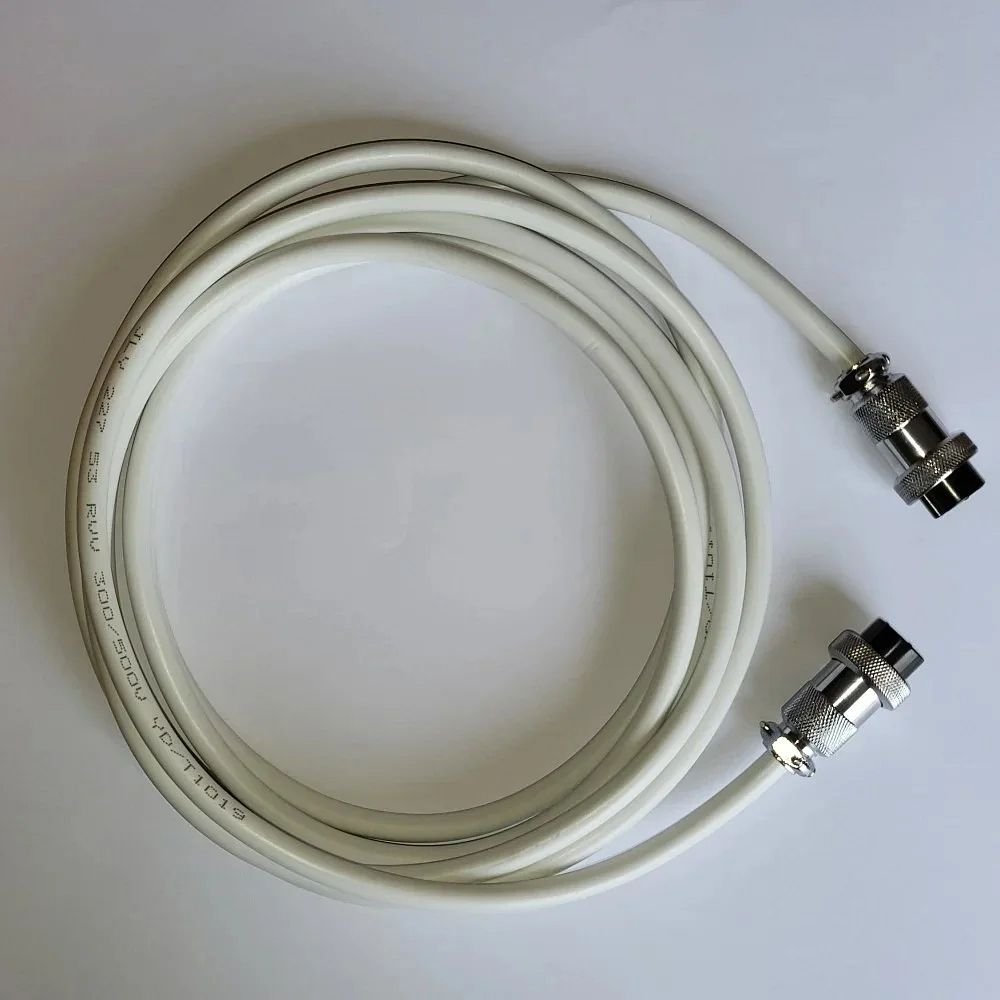

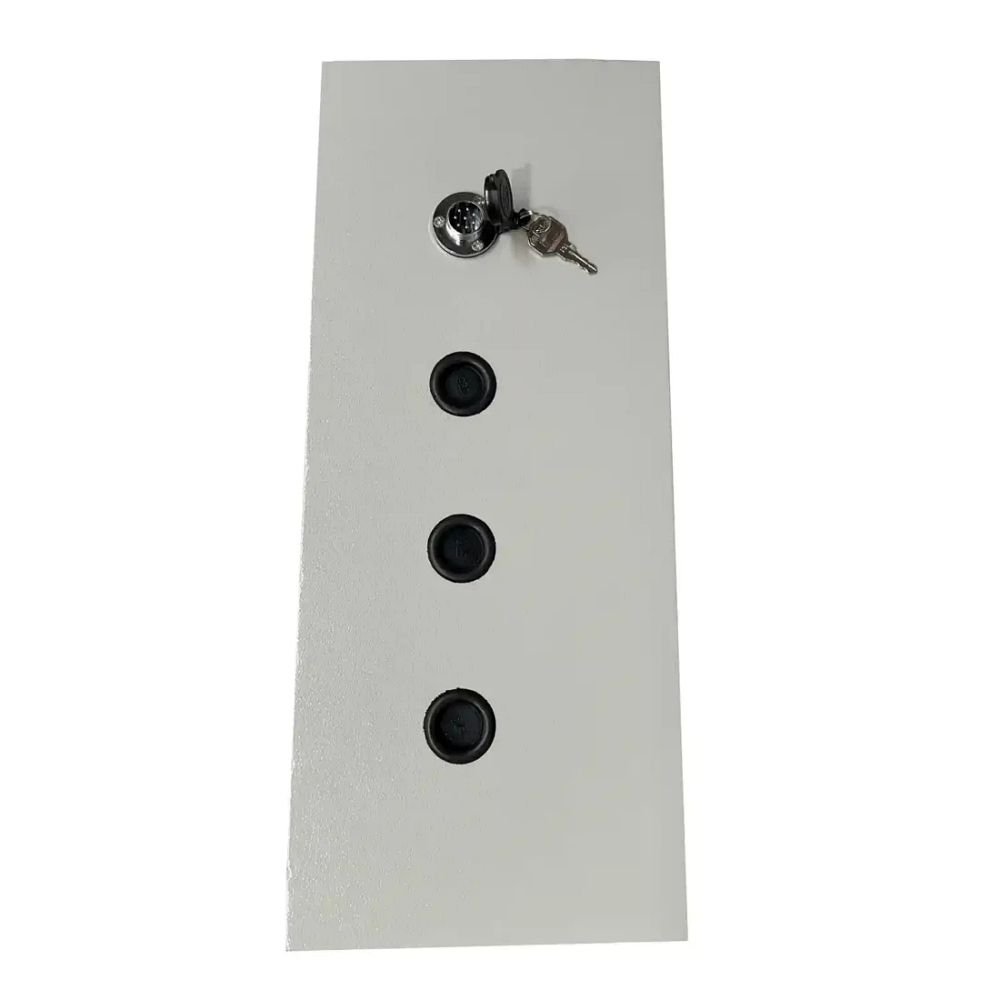

Designed for wall-mounted installation near your incoming mains supply, the unit features a bottom gland plate for tidy cable entry. The package includes a 5-meter control cable with pre-fitted plugs specifically for the Excel Power XL6000i and XL10000i. Because this involves a permanent connection to your building's primary electrical distribution, it is intended for installation by a qualified electrician.
