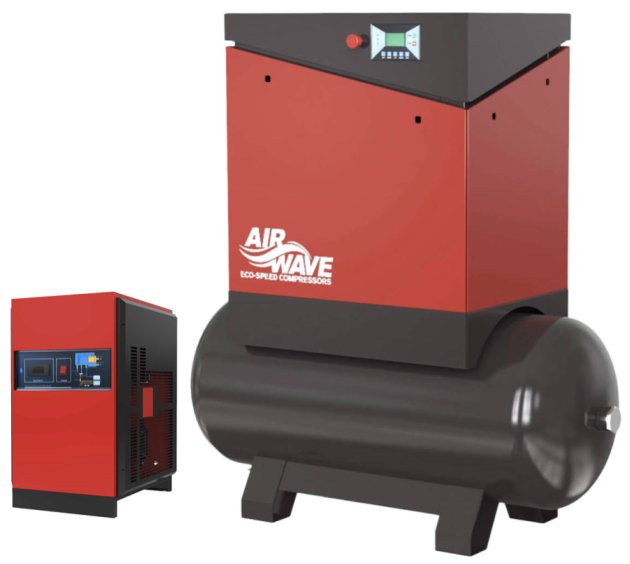

The Airwave ECO-Speed 10hp Fixed Speed Compressor delivers reliable performance with up to 35 CFM at 10 bar, ideal for workshops and industrial use. Its direct-drive motor and large air end ensure efficiency and longevity, while the intuitive controller provides advanced maintenance alerts. Equipped with a 300L tank and optional dryer, it offers clean, dry air in a compact, plug-and-play design with a low 64 dB(A) noise level.
- Motor Power and Type: 10 hp (7.5 kW) IP55 air-cooled motor with direct-drive fixed-speed technology for efficient operation.
- Voltage and Supply: Requires 400V, 3-phase, 50 Hz supply at 20 amps, equipped with a Star-Delta starter.
- Air Output Variations: Delivers 37.07 CFM at 7 bar, 34.95 CFM at 8 bar, and 31.77 CFM at 10 bar maximum working pressure.
- Tank and Dryer Configuration: 300L dumpy tank with a small footprint, plus a floor-mounted refrigerated dryer and included connection kit.
- Pump and Duty Cycle: Oil-lubricated rotary screw air end with 100% duty factor for continuous use.
- Noise and Dimensions: Operates at 64 dB(A); measures 1400 mm length x 820 mm depth x 1780 mm height.
- Outlet and Filtration: 1/2 BSP female thread outlet; optional 0.01 micron oil removal filters available.
- Monitoring and Warranty: Advanced system with maintenance warnings and thermostatic cooling; backed by a 2-year warranty (terms apply).
Robust Engineering for Reliable Performance
The Airwave ECO-Speed Fixed Speed Compressor, with its 10hp/7.5kW motor and 300L tank, is built for consistent, high-performance operation. Engineered for workshops, garages, and industrial settings, it delivers up to 35 CFM at a maximum of 10 bar. The oil-lubricated rotary screw pump and direct-drive technology ensure dependable output with a 100% duty factor, making it a reliable choice for demanding applications.
Efficiency Through Design
Operating at reduced RPMs, the large air end and direct-drive motor enhance energy efficiency and extend the compressor's lifespan. The absence of belts and motor bearings reduces maintenance needs, minimizing downtime and costs. This design prioritizes seamless performance, with solid, seamless pipework and low component count for long-term durability.
Smart Control for Optimal Operation
The ECO-Speed features an advanced monitoring system with an intuitive controller that provides real-time maintenance and fault warnings. This ensures the compressor runs at peak performance, allowing users to address issues proactively. The electric thermostatically controlled cooling system further supports stable operation, maintaining efficiency across various workloads.
Clean Air for Sensitive Applications
For industries requiring high-quality compressed air, the ECO-Speed offers an optional floor-mounted refrigerated dryer and filtration system. These additions ensure dry, clean air, free of contaminants, making it suitable for sensitive processes. The included compressor-to-dryer connection kit simplifies integration, delivering a compact solution with a small footprint.
Hassle-Free Installation and Versatility
Designed for straightforward setup, the ECO-Speed features a plug-and-play installation process, requiring only a 400V, 20-amp, 3-phase supply. With a 1/2 BSP female thread outlet and a compact 300L dumpy tank, it fits easily into diverse workspaces. The low 64 dB(A) noise level ensures it operates quietly, enhancing workplace comfort.
