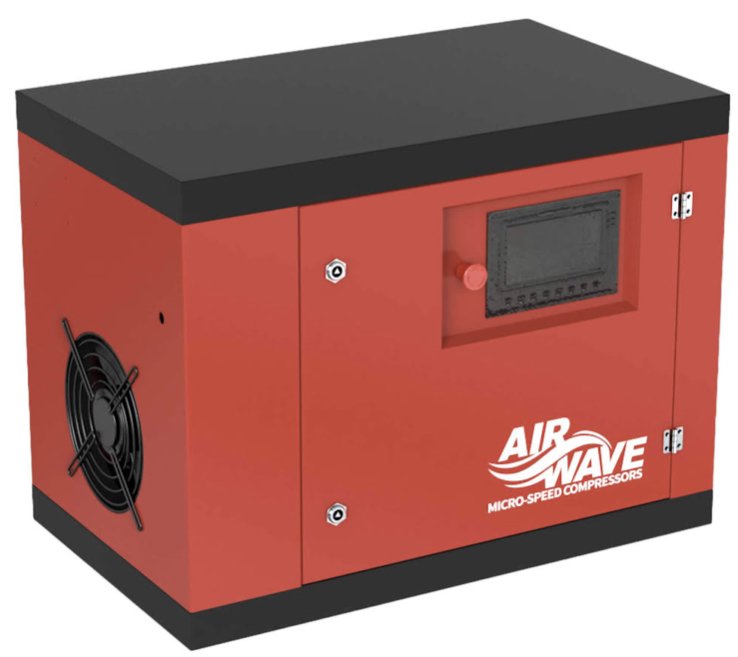

The Airwave Micro-Speed Variable Speed Compressor provides 12-24.01 CFM output at 7 bar with a 7.5 hp (5.5 kW) IP65 oil-cooled motor on a 230V supply. It features a 100% duty cycle rotary screw pump and variable speed drive for efficient performance across 6-10 bar pressure range. The VARI-Speed digital controller offers touchscreen control, maintenance alerts, and a 7-day programmable timer. Operating at 62 dB(A), its acoustic cabinet and compact 890 x 540 x 700 mm design suit small to medium industrial use.
- Power Rating: 7.5 hp (5.5 kW) motor, 230V single-phase, 40-amp supply.
- Air Output: 12-24.01 CFM at 7 bar, 12-22.95 CFM at 8 bar, 12-20.83 CFM at 9.5 bar.
- Maximum Pressure: 10 bar working pressure.
- Duty Cycle: 100% duty factor with rotary screw pump oil-lubricated air end.
- Cooling System: Electric thermostatically controlled cooling.
- Noise Level: 62 dB(A) with acoustic cabinet.
- Dimensions: 890 mm (L) x 540 mm (D) x 700 mm (H), floor-mounted.
- Outlet: 3/4 BSP female thread.
Airflow Precision Engineering
The Airwave Micro-Speed Variable Speed Compressor delivers a consistent compressed air output ranging from 12 to 24.01 CFM at 7 bar, adjusting down to 12-20.83 CFM at 9.5 bar, with a maximum pressure of 10 bar. Its rotary screw pump, oil-lubricated air end, operates with a 100% duty factor, ensuring reliable performance for small to medium industrial tasks. The floor-mounted design eliminates the need for a tank, making it a compact solution for tight workspaces.
Motor and Power Dynamics
Powered by a 7.5 hp (5.5 kW) IP65 oil-cooled permanent magnet motor, this compressor runs on a 230V single-phase supply with a 40-amp draw. The direct drive variable speed technology, paired with a soft start feature, reduces startup amps, enhancing efficiency and protecting the electrical system. The electric thermostatically controlled cooling system maintains optimal operating temperatures, supporting continuous use.
Control and Monitoring Hub
At the core of the compressor is the VARI-Speed digital controller, offering precise adjustments to air pressure and flow through a touchscreen interface. It includes advanced monitoring with maintenance warnings and a 7-day programmable start-stop function, allowing tailored operation schedules. The WiFi-enabled system provides remote access, streamlining oversight for varying industrial demands.
Noise Management Design
Operating at a modest 62 dB(A), the Airwave Micro-Speed Compressor minimizes workplace noise, suitable for workshops and manufacturing environments. Its acoustic cabinet design reduces sound levels, while the low component count and solid seamless pipework simplify maintenance. The 3/4 BSP female thread outlet ensures easy integration into existing systems.
Durability Through Simplicity
Constructed with a focus on longevity, the compressor features a robust build with minimal maintenance needs, supported by a 2-year warranty under specified terms and conditions. The plug-and-play installation and user-friendly servicing instructions reduce downtime, making it a practical choice for demanding industrial settings. Its dimensions of 890L x 540D x 700H allow it to fit efficiently into constrained areas.
