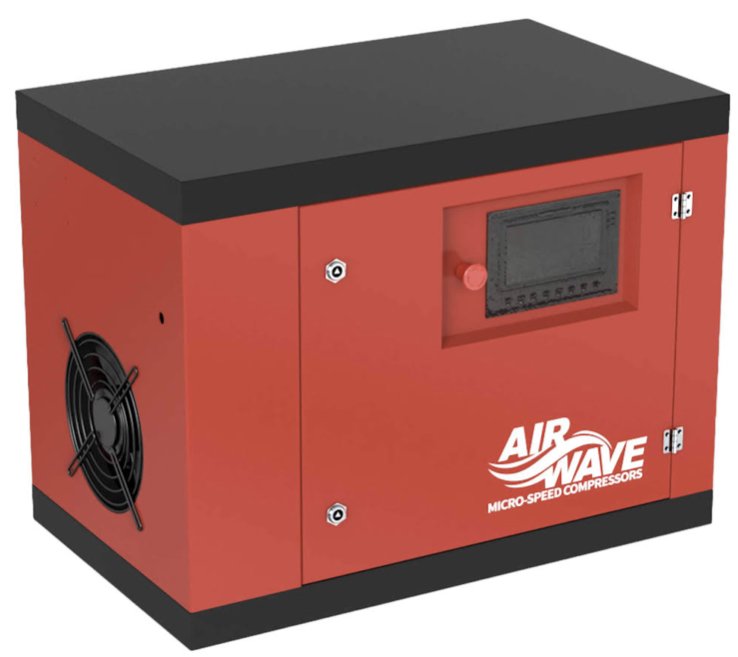

The Airwave Micro-Speed Compressor delivers powerful, energy-efficient compressed air with a 7.5hp motor and variable speed drive, achieving up to 24.01 CFM at 7 bar. Its compact, floor-mounted design and quiet 62 dB(A) operation suit small to medium industrial settings. The VARI-Speed digital controller offers precise control, WiFi connectivity, and a 7-day timer for optimized performance.
- Motor Specifications: 7.5 hp (5.5 kW) IP65 oil-cooled permanent magnet motor, operating on 400V/3-phase/50Hz with 20 amp supply and soft start for low startup amps.
- Air Output Range: Variable from 12-24.01 CFM at 7 bar, 12-22.95 CFM at 8 bar, and 12-20.83 CFM at 9.5 bar, with maximum working pressure of 10 bar.
- Drive Technology: Direct drive variable speed (VSD) with rotary screw oil-lubricated air-end and 100% duty factor for continuous operation.
- Control System: Touch-screen VARI-Speed digital controller with advanced monitoring, maintenance warnings, WiFi connectivity, and 7-day programmable start-stop function.
- Cooling Mechanism: Electric thermostatically controlled system with large-capacity oil cooler to maintain optimal temperatures and reduce power consumption.
- Noise Level: Operates at 62 dB(A) within an acoustic cabinet for reduced sound in workshop environments.
- Installation Details: Floor-mounted plug-and-play design with dimensions of 890 mm (L) x 540 mm (D) x 700 mm (H), 3/4 BSP female thread outlet, and seamless pipework.
- Maintenance and Warranty: Low component count for simple servicing, optional dryer and filters available, backed by a 2-year warranty (terms apply).
Compact Powerhouse
The Airwave Micro-Speed Compressor, with its 7.5hp/5.5kW motor and floor-mounted design, delivers up to 24.01 CFM at 7 bar in a remarkably small footprint (890L x 540D x 700H). Its space-saving construction allows seamless integration into workshops or small industrial setups where space is at a premium, without compromising on performance.
Precision Control with VARI-Speed
The VARI-Speed digital controller provides intuitive management of air pressure and flow, enabling tailored performance for diverse applications. Equipped with a touch-screen interface, advanced monitoring, maintenance alerts, and WiFi connectivity, it simplifies operation. The 7-day programmable start-stop function aligns the compressor’s schedule with your operational needs, enhancing efficiency.
Energy-Saving Performance
Featuring Variable Speed Drive (VSD) technology, the compressor adjusts motor speed to match real-time air demand, reducing energy consumption by up to 30%. With output ranging from 12-24.01 CFM at 7 bar to 12-20.83 CFM at 9.5 bar, it ensures optimal energy use across varying workloads, keeping operational costs low.
Robust and Reliable Air-End
The oil-lubricated rotary screw air-end, designed for 100% duty factor, ensures consistent, non-pulsating airflow for reliable performance in demanding environments. Its oversized pump design enhances efficiency and extends service life, making it ideal for manufacturing, automotive, and workshop applications.
Quiet and Serviceable Design
Encased in an acoustic cabinet, the compressor operates at just 62 dB(A), creating a quieter work environment. All panels are easily removable for straightforward servicing, while seamless pipework and low component count minimize maintenance needs, reducing downtime and costs.
Optimized Cooling for Durability
An electric thermostatically controlled cooling system, paired with a large-capacity oil cooler, maintains stable operating temperatures even in warm conditions. This design enhances durability and reduces power consumption, ensuring long-term reliability in challenging industrial settings.
Flexible Installation and Options
With a plug-and-play setup, 400V/20A 3-phase supply, and soft-start technology, installation is simple and efficient. The 3/4 BSP female thread outlet supports versatile integration, while optional refrigerated dryers and filters allow for enhanced air quality to meet specific operational requirements.
