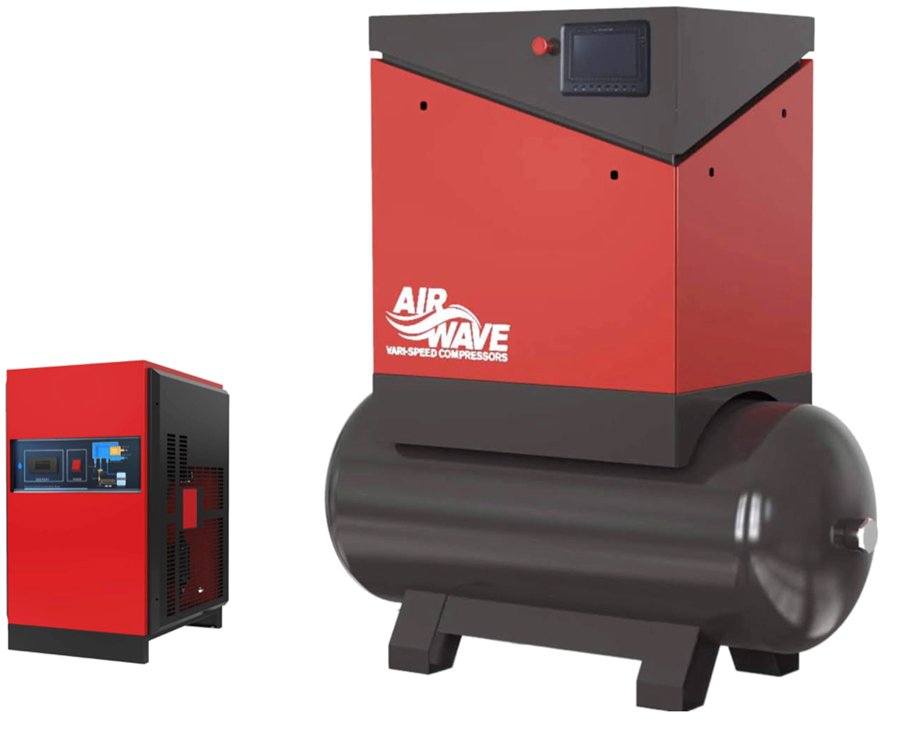

The Airwave VARI-Speed Compressor (10hp/7.5kW, 40 CFM, 6-10 Bar) features a 300L compact tank and Variable Speed Drive, saving up to 30% on energy. Its rotary screw air-end ensures steady airflow, while the 65 dB(A) acoustic cabinet minimizes noise. A separate refrigerated dryer delivers clean air, backed by a 2-year warranty (terms apply).
- Rotary Screw Pump Oil Lubricated (Air End)
- 100% Duty Factor
- Installation Simple Plug and Play
- Direct Drive Variable Speed Technology
- Motor 10 hp – 7.5 kw IP65 Oil Cooled Permanent Magnet
- Voltage 400/3/50 20 amp 3 Phase Supply
- Soft Start, Low Start Up Amps
- Latest Touch Screen, Advanced Monitoring System with Maintenance Warnings
- 7 Day Programable Start-Stop function
- Electric Thermostatically Controlled Cooling System
- Output 16-42 cfm @ 7 bar Free Air Delivered
- Output 16-40 cfm @ 8 bar Free Air Delivered
- Output 16-37 cfm @ 10 bar Free Air Delivered
- Max Working Pressure 10 Bar
- Tank Size - 300L (Dumpy Tank, Small Footprint)
- Low Component Count, Solid Seamless pipework
- Outlet 1/2 BSP Female Thread
- Dryer – Yes, Floor Mounted, Compressor To Dryer Connection Kit Included
- Filters – Optional, 0.01 Oil Removal
- dB(A) 65
- 2 Year Warranty T&Cs apply
Smart Control with VARI-Speed System
The Airwave VARI-Speed Compressor is equipped with a digital controller that enables precise adjustments to air pressure and flow. Its touch-screen interface provides advanced monitoring and maintenance alerts, ensuring reliable operation. A 7-day programmable timer allows scheduling flexibility, catering to businesses with varied operational hours.
Streamlined Maintenance for Efficiency
Maintenance is straightforward with the VARI-Speed Compressor’s user-friendly design. Clear servicing instructions, combined with a low component count and seamless pipework, ensure minimal downtime and keep operations running smoothly.
Energy Optimization via Variable Speed Drive
The compressor’s Variable Speed Drive (VSD) technology adjusts motor speed to match air demand, cutting energy costs by up to 30%. With customizable VSD options, it adapts to specific air requirements, enhancing efficiency across diverse conditions.
High-Performance Air-End Design
Featuring a unique rotary screw air-end, the compressor delivers steady, non-pulsating airflow. This oversized, oil-lubricated pump boosts efficiency and extends service life, outperforming traditional piston compressors.
Low-Noise Operation with Acoustic Enclosure
Encased in an acoustic cabinet, the compressor operates at just 65 dB(A), creating a quieter workplace. Removable panels simplify servicing, while a large oil cooler and thermostatically controlled fan maintain optimal temperatures, even in warm environments.
Robust Cooling for Long-Term Reliability
The electric thermostatically controlled cooling system ensures consistent operating temperatures, enhancing component longevity and maintaining performance under demanding conditions.
Superior Air Quality with Separate Dryer
The included floor-mounted refrigerated dryer, with optional 0.01 oil removal filtration, delivers clean, dry air. Its separate placement from the compressor prevents heat interference, ensuring high-quality output for sensitive applications.
Compact and Durable 300L Tank Design
With a 300L "dumpy tank" design, the compressor maximizes air storage while minimizing footprint. Built with seamless pipework and a low component count, it withstands tough conditions with a 10 bar maximum pressure and a 2-year warranty (terms apply).
