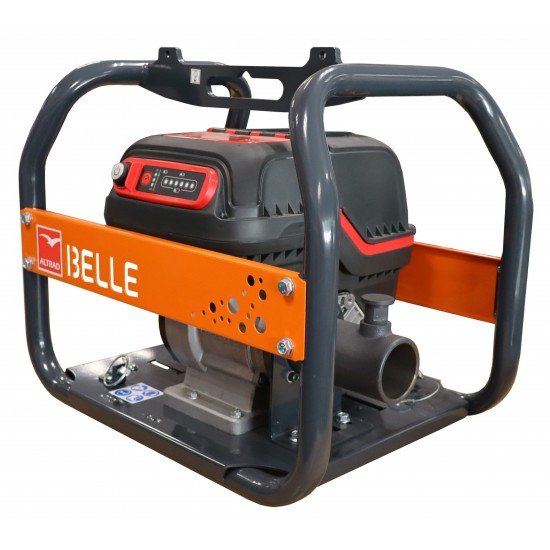

The DUX E+ is a robust, portable poker drive unit designed for effective concrete consolidation, powered by an 82V, 2.2kW digital brushless motor. It features a stackable, protective frame with single-point lifting for easy site handling. Crucially, the unit is emission-free and low-noise, making it ideal for indoor and sensitive areas, and runs on the convenient, interchangeable Altrad Belle 82V battery system.
- Motor: Powerful 82V, 2.2kW digital brushless motor.
- Design: Robust, stackable engine protection frame with single-point lifting.
- Compatibility: For use with BGA Pokers ranging from 25mm to 68mm diameters.
- Portability: Compact and portable design for easy transport and handling.
- Power Source: Interchangeable 82V battery system (compatible with the Altrad Belle E+ range).
- Maintenance: Electric design ensures no routine power unit maintenance is required.
Core Power for Concrete Consolidation
The DUX E+ is a robust, portable poker drive unit engineered for demanding site conditions and frequent rental use. It delivers effective air removal from concrete using an independent, portable power source. At its heart is a powerful 82V, 2.2kW digital brushless motor, which provides consistent, high-torque performance necessary for optimal concrete vibration and consolidation.
Protection and Portability
Designed for the reality of the construction site, the DUX E+ features a robust and durable engine protection frame. The unit is compact and lightweight, ensuring ease of transport across worksites. The frame is stackable, which assists in minimizing the unit’s environmental footprint during transport and storage. For safety and compliance, the unit includes a single-point lifting mechanism and a securing pin to minimize manual handling risk when moving the equipment. An optional swivel base is available to further enhance versatility on site.
Clean and Quiet Operation
This drive unit operates completely emission-free, making it suitable for use indoors and in environments with poor ventilation, such as basements and tunnels, where exhaust fumes are a hazard. Its zero-emission design also allows it to be used in environmentally sensitive areas, including national parks, nature reserves, and urban emission-controlled zones. The low noise output is beneficial for increasing operating hours in noise-restricted locations.
Reliability Without Routine Servicing
The electric-powered design eliminates the need for routine power unit maintenance, significantly reducing servicing costs and preventing costly downtime associated with repairs. Since it does not rely on modern fuels, it avoids common issues like blocked carburettors, ensuring greater operational availability. The DUX E+ is designed for use with a wide range of BGA Pokers, available in diameters from 25mm to 68mm.
Interchangeable Battery Convenience
The drive unit is powered by the Altrad Belle E+ 82V battery system. A key benefit of this design is the battery interchangeability across the entire Altrad Belle E+ 82V product range. This feature provides significant convenience and flexibility, allowing site managers to consolidate and simplify their battery management system across multiple tools.
Battery and Charger Not Included
