Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Generator

Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Generator
  • Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Generator
  • Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Generator
  • Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Generator
  • Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Generator
  • Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Generator
  • Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Generator

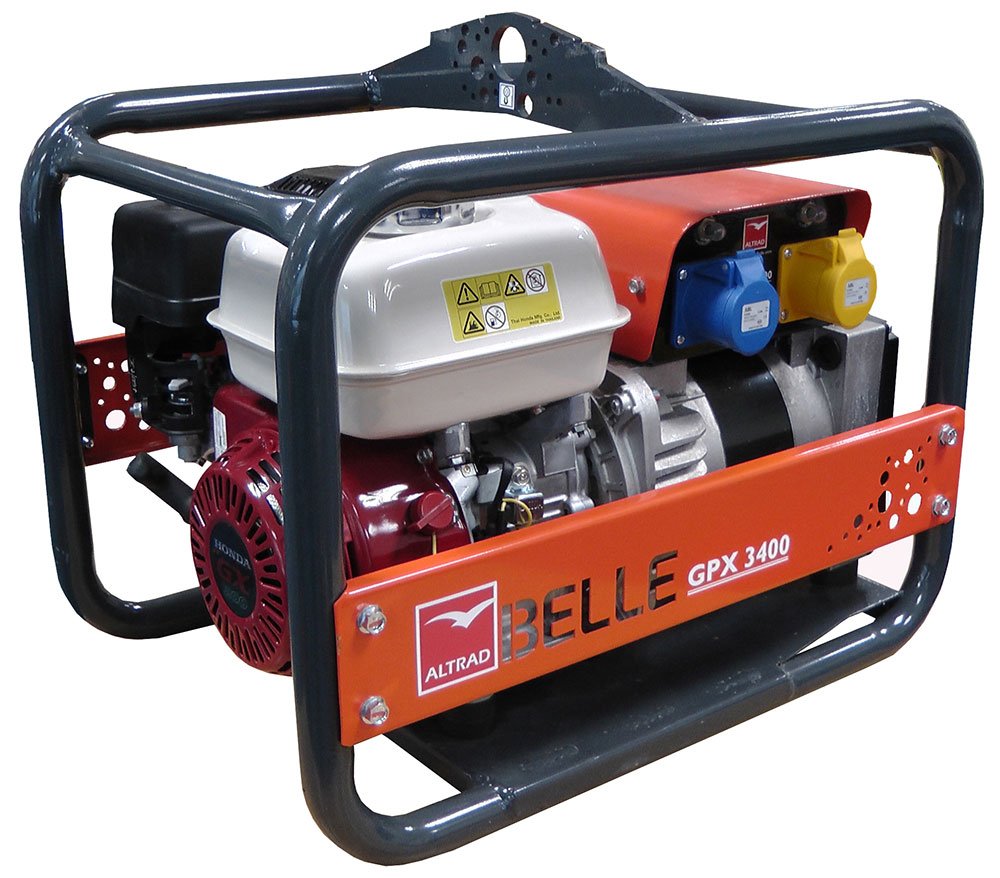

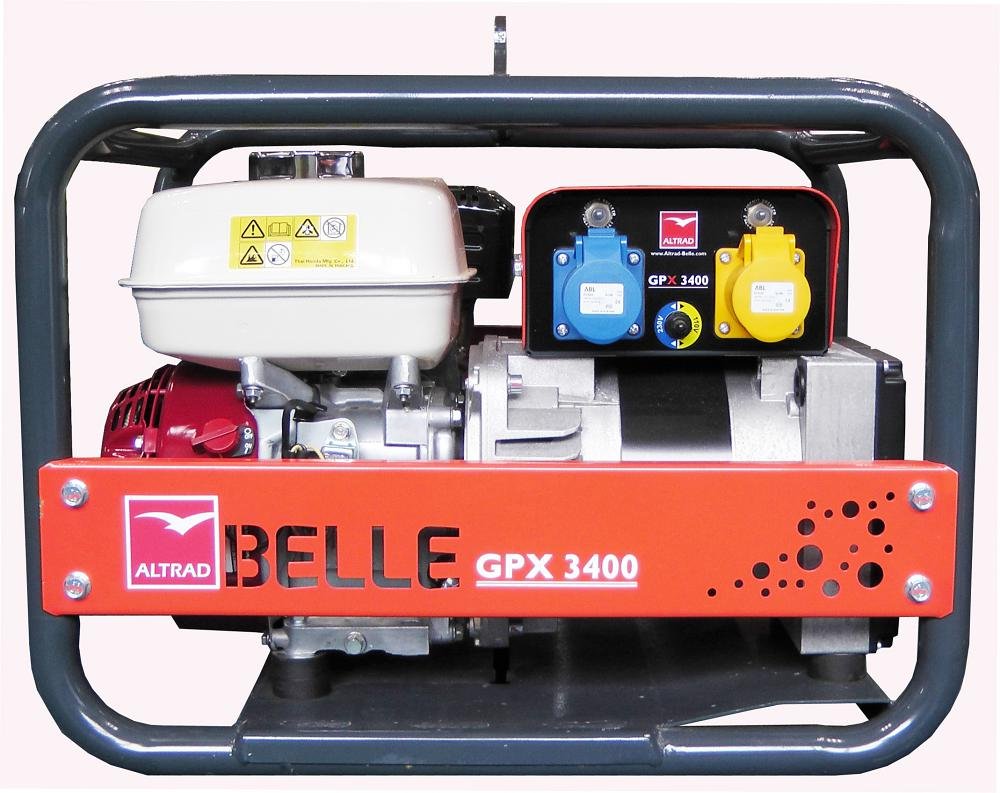

This 3.4kva / 2.7kw (2.5kw continuous) generator from Belle is powered by a Honda GX200 petrol engine and is stackable. It has 1 x 110v 16A, 1 x 240v 16A and 1 x 110v 32A sockets. The engine and alternator are protected from physical damage by the frame and the electrics have full overload protection. Ideal for commercial and hire applications.

MPN: G3401S
Our Price: £653.13 excl VAT
Our Price: £653.13 inc VAT
Free Delivery

Due to production delays, most Belle items are taking up to 5-10 working days for delivery (normally 2-5 working days). Most Belle orders are made to order and sent directly by Altrad Belle. Please contact us to check availability and for faster delivery options. Deliveries to Scottish Highlands may cost extra for this item.

Belle GPX3400 Honda Powered 3.4kva / 2.7kw Stackable Generator

This 3.4va / 2.7kw (2.5kw continuous) generator from Belle is powered by a Honda GX200 petrol engine and is stackable. It has 1 x 110v 16A, 1 x 240v 16A and 1 x 110v 32A sockets. The engine and alternator are protected from physical damage by the frame and the electrics have full overload protection. Ideal for commercial and hire applications.

  • Robust large diameter frame with built-in Engine / Alternator.
  • Protection belly plate to aid use on soft ground.
  • Professional Honda engine with recoil start.
  • Low engine oil cut-off.
  • High quality, heavy-duty NSM Alternator.

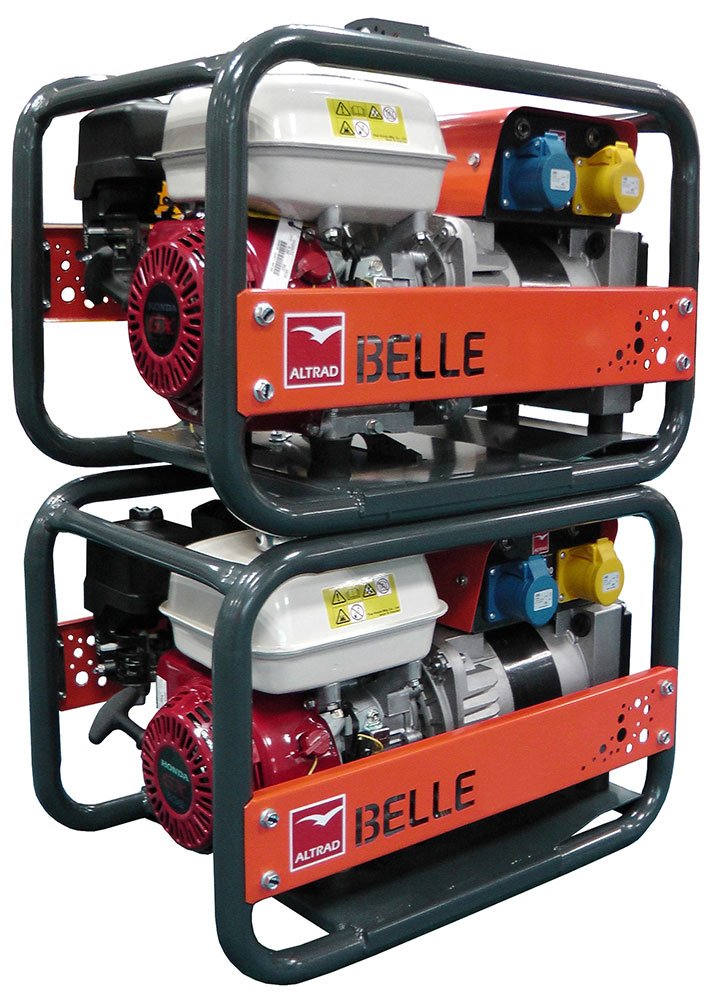

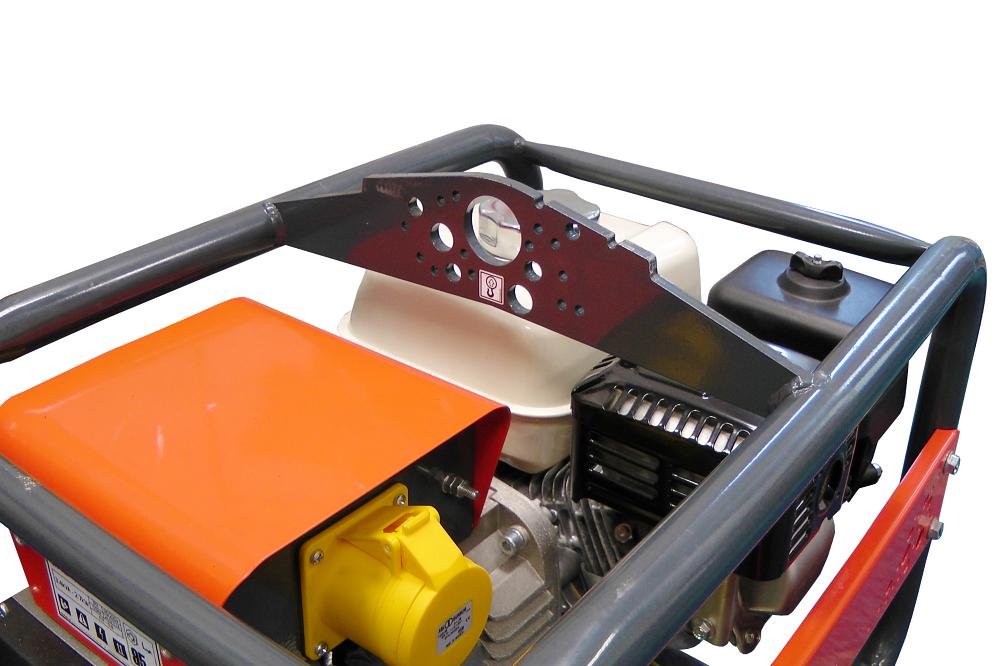

  • Stackable frame ('Patent Pending') with single point lifting to reduce enviromental impact and minimize manual handling risk. Complete with securing pin for added safety.
  • Engine / Alternator side impact protection.
  • Durable screw-in sockets.
  • Metal covered fuse box.
  • Over-sized 4-point Anti-Vibration mounts.
  • Rental-proof, robust, steel electrical enclosure.

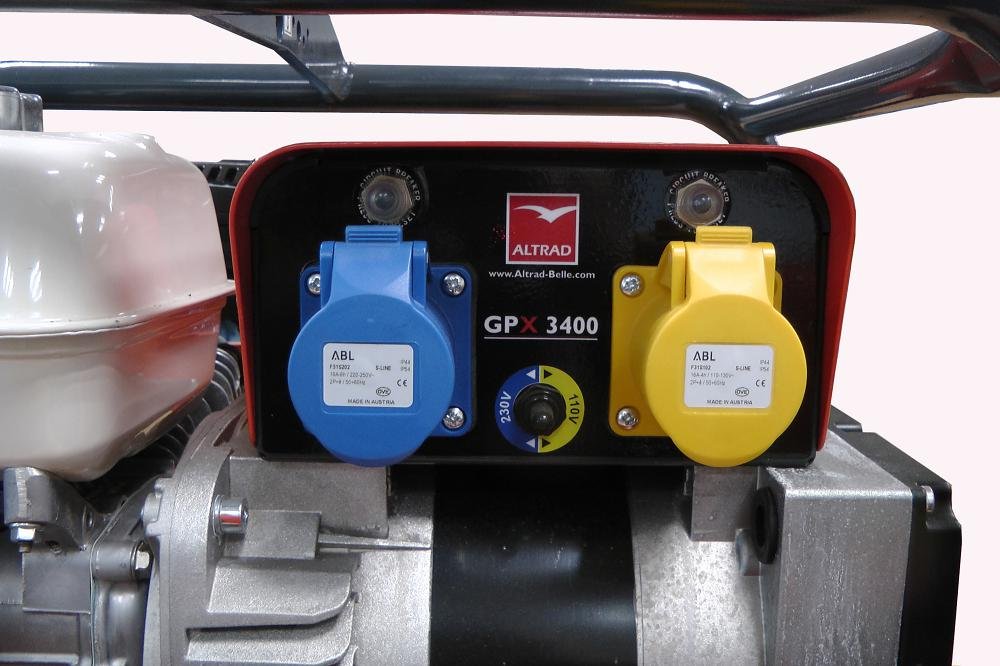

  • Selectable 110v (16A and 32A or 230v.
  • System breakers for 110v & 230v supplies.
  • Specifically designed for hire and rental markets.
  • Accessible service points.

Specification

Fuel Capacity 3.1L
Engine Power @ 3000rpm 4.3hp / 3.3kw
Rating @ 0.8 p/f 3.4kVA
PRP Rating 2.7kw
COP Rating (Continuous) 2.5kw
No of sockets 110v 16a x 1, 110v 32A and 230v 16a x 1
Frequency 50Hz
Alternator NSM K100 Range
Maximum Current @ 110v 24.50
Maximum Current @ 230V 11.70
Running hours at @ 90% of COP 2.3Hrs
Sound Power Level LWA 95
Dimensions Width x Height x Length 432mm x 515mm x 618mm
Weight 47kg
