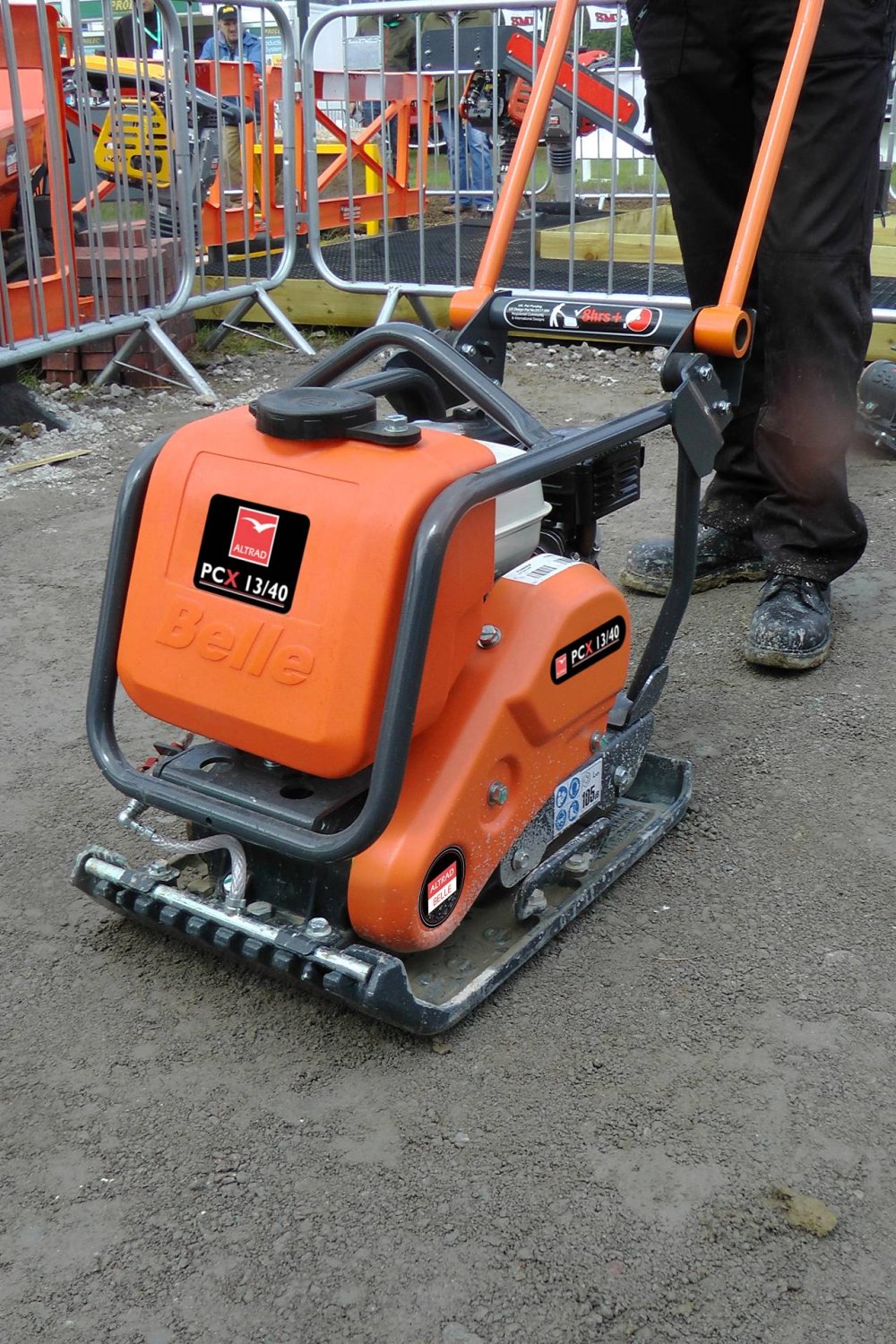

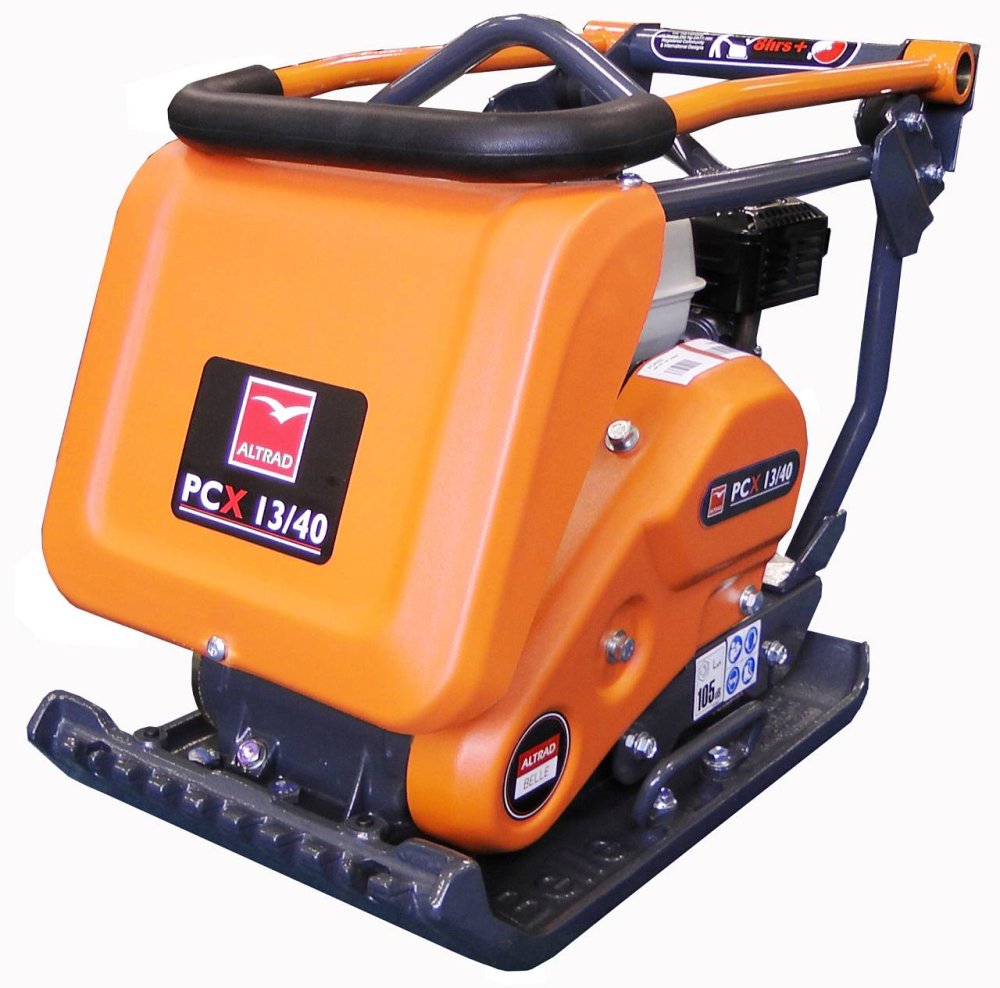

Forward combination plates for soil and asphalt. Powered by a Honda GX120 engine, producing 4hp, the Belle PCX 12/36 (PCX 360) Plate Compactor has plates with unique safety features, performance and stylish looks. Made in the UK and with the Honda engine, you know it's built to last.
- Low hand-arm vibration - for operator health and safety
- 8 hours + safe usage time.
- Powered by a Honda GX120 petrol engine
- Faster travel speed - for improved productivity
- Engine protection frame - also provides a lifting point
- Handle folds flat - compact size for transport and storage
- Asphalt Combination Rounded Edge
- Cast base plate with rounded edges and integrated spray bar
- Foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to form work.
- Reinforced centrifugal clutch ensures longer belt life, and simplified belt adjustment
- Lifting points and front lift cage offer easier loading and unloading for operator convenience
- Large capacity water tank is built into the protective frame
- Angled holes on spray bar allow complete water coverage over the full width preventing any asphalt pick-up on plate bottom
- The spraybar is fully protected from damage, easily positioned,with integral paving pad clamp points
- Life lubricated vibration bearings
- 1 Year Belle Warranty
- Option for water tank
The PCX has life lubricated vibration bearings and a reinforced centrifugal clutch which increases belt life and simplifies belt adjustment. The frame protects the engine and has been desinged to be able to be attached to a crane, and there are multile lifting handles to aid lifting.
