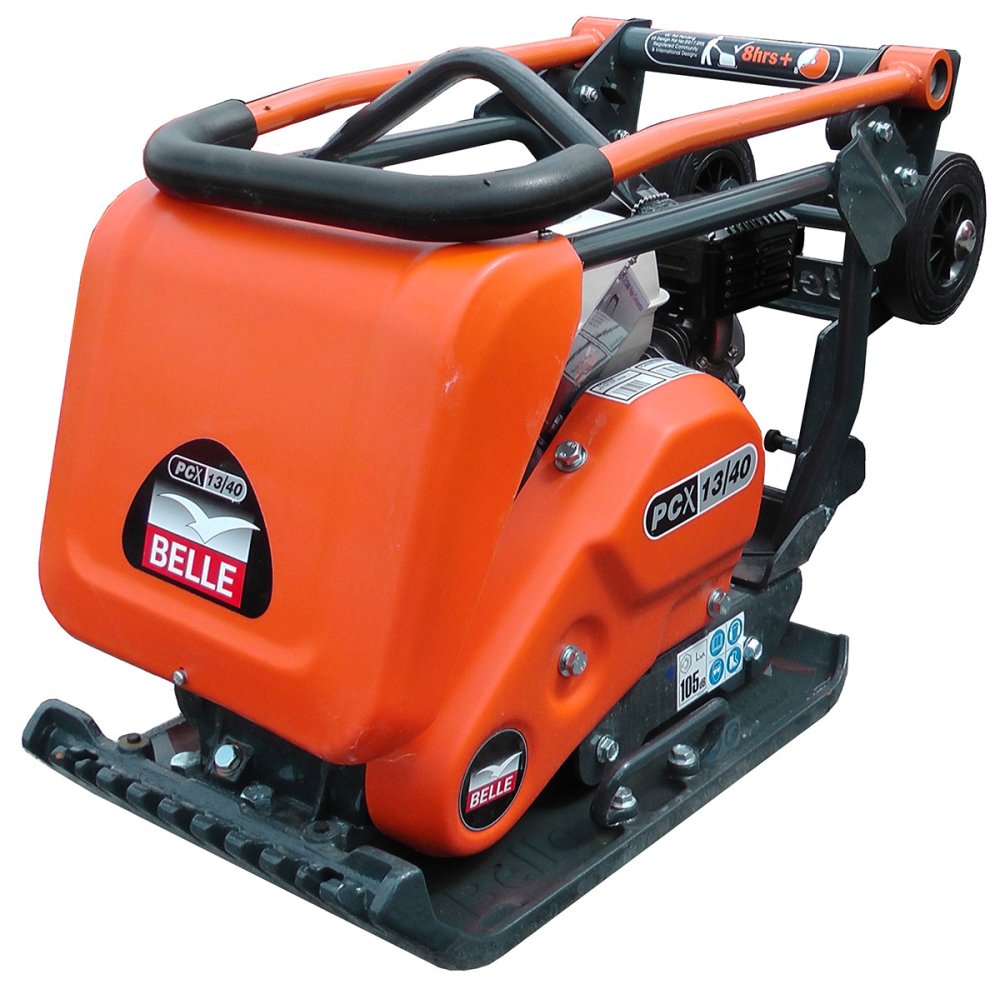

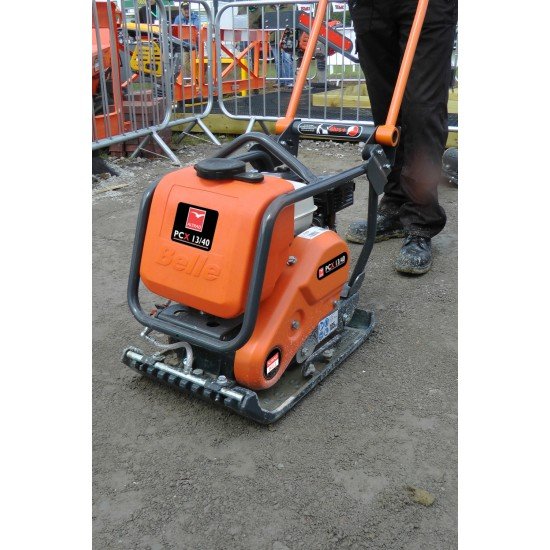

Belle PCX 13/40 (PCX400) 16" Loncin Engined Petrol Plate Compactor

Heavyweight professional compaction plates with low HAV and very high-performance compaction. Designed with a shorter baseplate to offer improved compaction, manoeuvrability and finish. Fitted with a Loncin H135 petrol engine.

Water tank not included in the sale.

MPN: FC4060E

Normal Price: £1,042.15 inc VAT
Our Price: £860.26 excl VAT
Offer Price: £860.26 inc VAT

Free Delivery

Due to production delays, most Belle items are taking up to 5-10 working days for delivery (normally 2-5 working days). Most Belle orders are made to order and sent directly by Altrad Belle. Please contact us to check availability and for faster delivery options. Deliveries to Scottish Highlands may cost extra for this item.

Quantity

Add to Basket

Full Description
Specification

Belle PCX 13/40 (PCX400) 16" Loncin Engined Petrol Plate Compactor

Key Features

The foldable mounted guide handle offers superior manoeuvrability and can be lowered to operate under obstacles and close to formwork.
A reinforced centrifugal clutch ensures longer belt life and simplified belt adjustment.
Lifting points and front lift cages offer easier loading and unloading for operator convenience.
Angled holes on the spray bar allow complete water coverage over the full width preventing any asphalt pick-up on the plate bottom.
Optional compact wheel kit, easily fitted and removed.
Life lubricated vibration bearings.

Specification

Ref	FC4060E
Model	PCX 13/40
Engine Model	Loncin H135 Petrol
Engine Power (hp/kW) Plate Size WxL	3.5 / 2.6

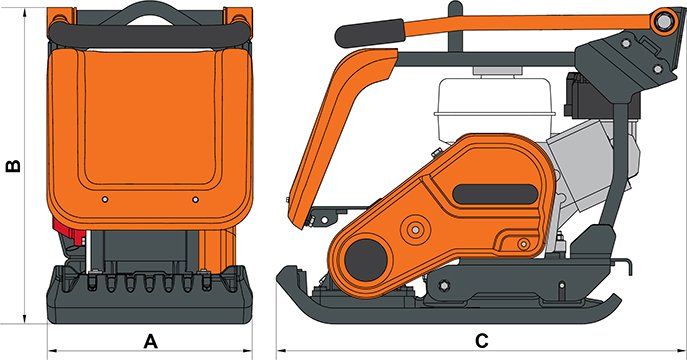

Plate Size WxL (mm)	400 x 606
Static Pressure (kg/m2)	520
Centrifugal Force (kN)	13
Travel Speed (m/min)	20
Weight (kg)	83.5
