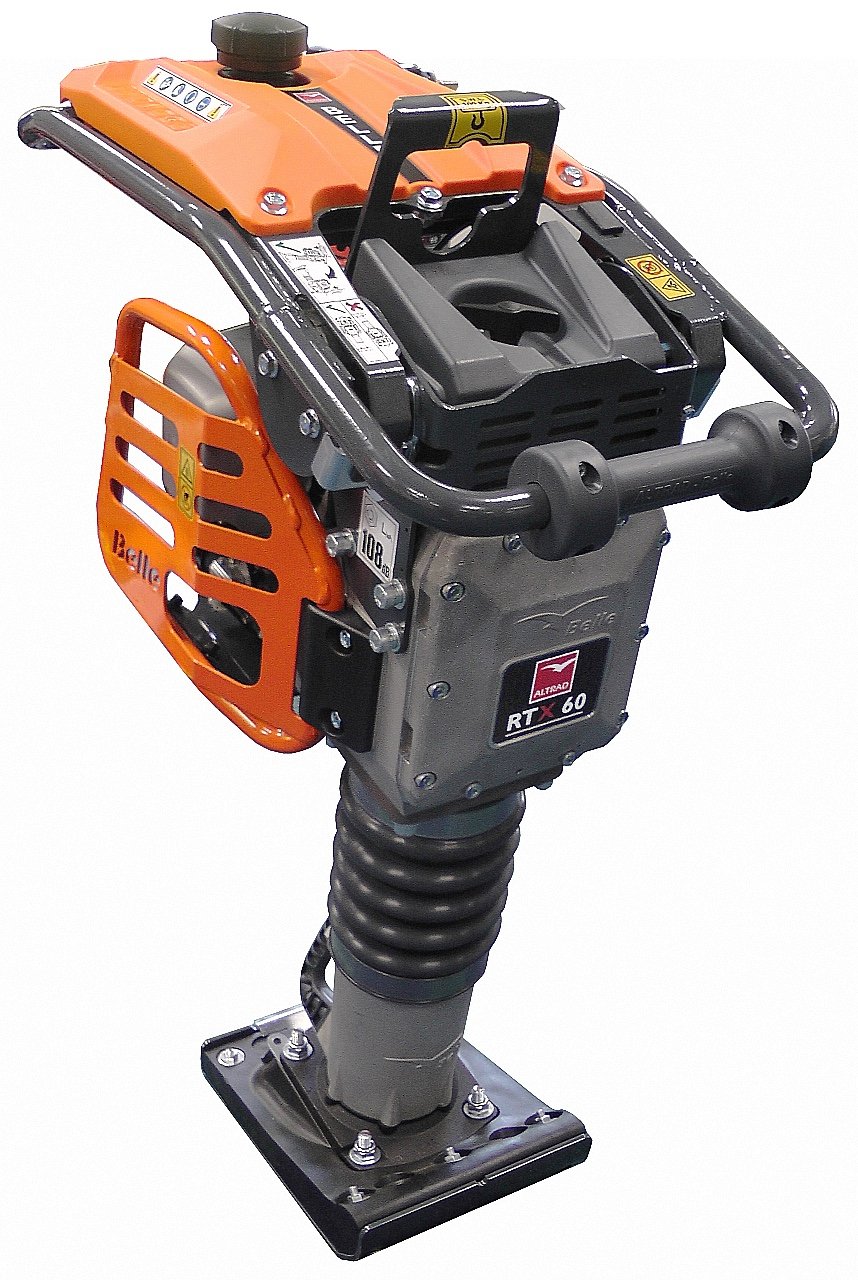

The Belle RTX range of trench rammers offers great features and benefits and they are built to a very high-quality standard, being powered by the very reliable Honda GX100 4-stroke petrol engine that is very known in the industry. This machine comes with a 165mm foot that will do 450-600 blows per min at a force of 13.6kN, weighing only 60kg it is a nice lightweight unit that gets the jobs done on any job site.
Features & Benefits
Xtra power for use on cohesive materials & gradients.
● Xtra strong, durable design.
● Low Hand-Arm Vibration.

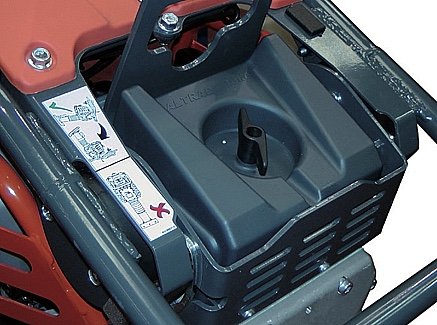

● Triple-Filtration Air Cleaner System.
● Duel-Filtration Fuel System.
● Swing-Out engine protection for easy access to maintenance points.

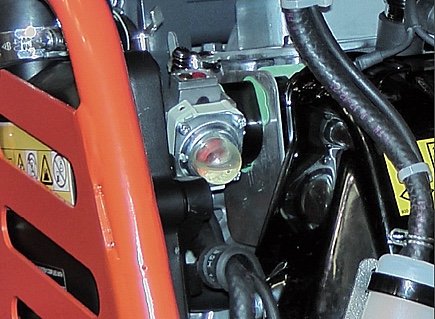

● Carburettor Primer Bulb for an easy start in any conditions.
● Low-maintenance leg with Oil Level Sight Glass.
● Lower Grab Handle and Front Roller for easy transportation. Both easily replaceable.
● Wooden, Plastic & Extension Foot options, with various widths available.
● Service Kits available.
● Wheel Kit & Transport Trolley options available.
● Hourmeter option available.
● Customer colour options available (please contact us for a quote)
Technical Specifications
- Honda GX100 98cc unleaded Petrol engine
- Engine power of 3.1HP or 2.3kW
- Rammer shoe size - 165mm or 6.5"
- 2.5 litre Fuel tank
- Recoil start
- Vibration frequency 11Hz
- Impact force 13.6kN
- Blows per min 450-600
- Stroke 52mm
- 3 Axis vibration 7.7 m/sec2
- Noise of 108 dB(A)
- Weight of only 60 kg
- Size - 345 x 705 x 975 WxLxH mm
