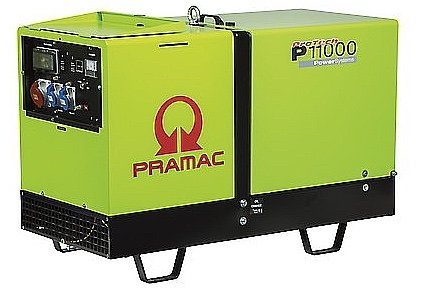

The Pramac P11000 is a 230V single-phase diesel generator powered by a Stage V compliant, water-cooled Yanmar engine. It delivers a continuous power output of 9.00 kW and an emergency standby capacity of 9.72 kW. This professional unit features a 24-liter fuel tank for over 8 hours of runtime at 75% load and includes an integrated control panel with Isometer protection and multiple CEE sockets.
The Pramac P11000 is a professional-grade, single-phase diesel generator designed for high-performance power delivery. Engineered with a water-cooled Yanmar engine and a Mecc Alte alternator, this unit provides a reliable power source for both continuous and emergency standby applications.
- Engine Powerplant: Features a water-cooled Yanmar 3TNM74F-NHPGE diesel engine with a 993cm/3 displacement.
- Electrical Output: Provides a continuous power (COP) of 9.00 kW and an emergency standby power (ESP) of 9.72 kW at 230V.
- Operating Speed: The engine operates at a nominal speed of 3000 rpm regulated by a mechanical speed governor.
- Alternator Specs: Utilizes a Mecc Alte 2-pole alternator with a capacitor-based voltage regulation system.Fuel Endurance: Equipped with a 24-liter tank, offering approximately 8.11 hours of runtime at 75% load.Protection Standards: Built with an IP23 protection rating for the alternator and includes Isometer protection (IPP) on the control panel.
- Socket Configuration: Includes one 32A 230V CEE socket and two 16A 230V CEE sockets for equipment connection.
- Physical Dimensions: The unit weighs 320 kg (dry) and measures 1400mm x 650mm x 975mm (LxWxH).
High-Efficiency Diesel Powerplant
The core of this generator is a Yanmar 3TNM74F-NHPGE three-cylinder engine. This Stage V compliant diesel engine features a 993 $cm^3$ displacement and operates at a nominal speed of 3000 rpm. It utilizes a water cooling system and a mechanical speed governor to maintain thermal stability and consistent engine performance during extended use.
Reliable Power Generation Output
Equipped with a Mecc Alte 2-pole alternator, the P11000 delivers a continuous power (COP) of 9.00 kW (10.00 kVA). For emergency situations, the Emergency Standby Power (ESP) rating reaches 9.72 kW (10.80 kVA). The electrical output is regulated via a capacitor system, providing a stable 230V, 50Hz supply with a power factor of 0.9.
Operational Endurance and Economy
The unit is built for sustained operation, featuring a 24-liter fuel tank. At 75% load, the generator consumes 2.96 liters of fuel per hour, allowing for a continuous running time of approximately 8.11 hours. At full 100% load, the consumption increases to 4.19 liters per hour, providing 5.73 hours of operation.
Integrated Control and Safety Interface
The generator includes a Manual Control Panel (MCP) that houses all necessary instrumentation and protection. The interface features a voltmeter, hourmeter, and a low oil pressure alarm lamp for monitoring. For electrical safety, the panel is equipped with a circuit breaker and Isometer protection (IPP), alongside two 16A and one 32A CEE sockets.
Physical Profile and Acoustic Performance
Designed with a compact footprint, the generator measures 1400mm in length and 650mm in width, with a dry weight of 320 kg. To manage environmental impact, it is engineered for a noise pressure level of 68 dB(A) at 7 meters, with a guaranteed sound power level (LWA) of 96 dB(A).
| Engine Brand |
Yanmar |
| Model |
3TNM74F-NHPGE |
| Exhaust Emission Level |
Stage V |
| Engine Cooling System |
Water |
| Displacement |
993 cm³ |
| Aspiration |
Natural |
| Operating Speed |
3000 rpm |
| Speed Governor |
Mechanical |
| Fuel |
Diesel |
| Oil Capacity |
3.4 L |
| Coolant Capacity |
1 L |
| Starting System |
Electric |
| Electric Circuit |
12 Volts |
