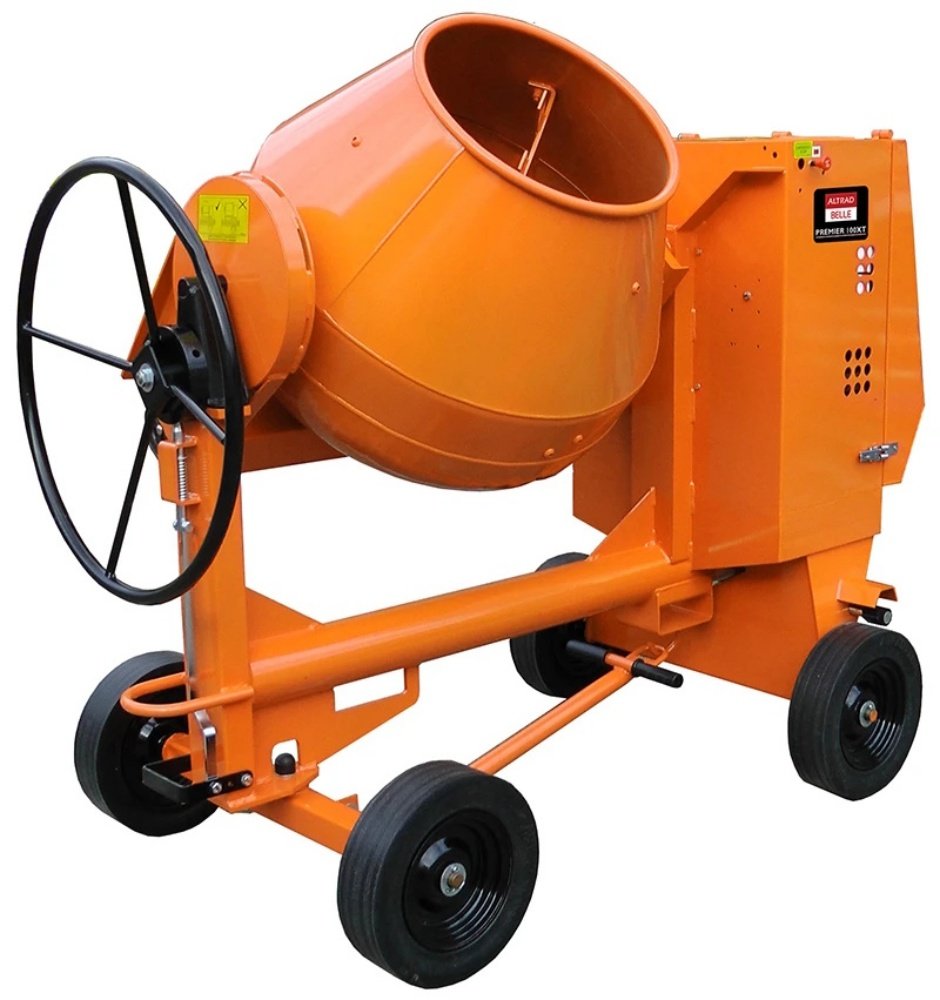

The Premier 175XT is a high-torque, diesel-powered site mixer featuring a 3.4 hp Yanmar L48 Stage V engine with convenient electric start for reliable all-weather operation. Built for heavy-duty batching, its reinforced 350L drum delivers a generous 180L mixing capacity, ensuring high productivity for concrete, mortar, and plaster. With a rugged 345 kg chassis and professional-grade components, this mixer is specifically engineered to thrive in the most demanding site conditions and rental environments.
- High-Torque Power: Features a Stage V compliant Yanmar L48 Diesel engine delivering 3.4 hp (2.5 kW).
- Large Batch Capacity: 350L drum volume providing an efficient 180L maximum mixing output.
- Electric Start: Integrated electric start system for effortless operation and reliable site performance.
- Industrial Durability: Extra-rigid reinforced drum and a robust 345 kg chassis built for tough conditions.
- Precision Mixing: Operates at a consistent 19 rpm to ensure uniform material density and quality.
- Site Dimensions: Professional-grade footprint measuring 900mm x 1,500mm x 1,890mm (WxHxL).
Engine and Power
The Premier 175XT Yanmar Diesel Electric Start - Stage V is equipped with a Yanmar L48 Diesel Electric Start Stage V delivering 3.4 hp / 2.5 kW. This power unit provides reliable performance for consistent mixing operations across various material types and densities.
Drum Capacity and Output
Featuring a 350 litres drum with a maximum mixing capacity of 180 litres, this mixer operates at 19 rpm. The drum design incorporates reinforced construction to prevent distortion under heavy loads.
Construction and Durability
Built with a robust chassis designed to withstand tough site conditions, this heavy-duty site mixer features extra rigid drum construction and high-quality components. The unit weighs 345 kg with overall dimensions of 900mm x 1,500mm x 1,890mm (W x H x L).
Key Features
- Stage V compliant engine
- High torque diesel
- Large batch capacity
- Tough site conditions ready
Technical Specifications
| Motor Type |
Yanmar L48 Diesel Electric Start Stage V |
| Power Output |
3.4 hp / 2.5 kW |
| Drum Capacity |
350 litres |
| Mixing Capacity |
180 litres |
| Drum Speed |
19 rpm |
| Weight |
345 kg |
| Dimensions (WxHxL) |
900mm x 1,500mm x 1,890mm |
Applications
This mixer is suitable for prolonged site usage and rental fleet operations. It handles concrete, mortar, and plaster mixing with consistent results.
