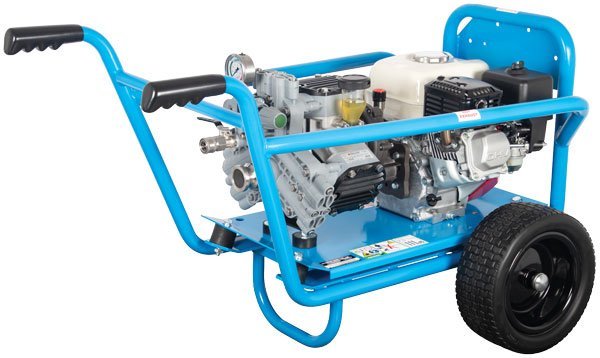

The Spraywash Honda SW4020PHR GX160 Soft Washer combines a reliable Honda GX160 engine with a Comet P40/20 diaphragm pump, delivering 20 bar (290 psi) pressure and 40 L/pm flow for effective soft washing. Built with polypropylene and stainless steel components plus Viton seals, it offers excellent corrosion resistance for use with a wide range of chemicals, including sodium hypochlorite. Supplied complete with a soft wash lance, multiple quick-release nozzles, 25m delivery hose, suction hose with filter, and a mobile powder-coated trolley for easy transport and operation.
- 20 Bar - 290 psi
- 40 Lpm
- Comet P40/20 pump - For Soft Wash
- Honda GX160 with oil alert
- 650 Rpm gearbox drive
- Adjustable pressure regulator
- Powder-coated trolley - 13" wheels
- Soft Wash lance w/ QR nozzle holder
- 0°, 15°, 25° & 40° QR nozzles
- 25m PVC delivery hose
- 3m heavy duty suction hose & filter
Reliable Honda Powertrain
The unit is powered by the Honda GX160 engine, a 163cc air-cooled 4-stroke OHV design delivering 4.8 HP at 3600 RPM with oil alert for low-oil shutdown protection. A 650 RPM gearbox drives the pump, ensuring consistent performance suited to prolonged operation.
Diaphragm Pump for Chemical Handling
At the core is the Comet P40/20 diaphragm pump with a polypropylene body and Viton seals and diaphragms. This configuration provides resistance to corrosive chemicals, including sodium hypochlorite solutions commonly used in foaming and washdown tasks. The pump operates at up to 20 bar (290 psi) with a flow rate of 40 L/pm.
Gentle Yet Effective Output
The system delivers low-pressure, high-volume flow at 20 bar and 40 litres per minute, allowing thorough coverage with chemical mixtures while minimizing surface damage on delicate materials like roofing, siding, or painted areas.
Corrosion-Resistant Construction
All liquid-contact fittings, accessories, and couplings are polypropylene or stainless steel with Viton seals. This material selection supports compatibility with a wide range of chemicals for commercial applications requiring durability against corrosion.
Complete Application Kit

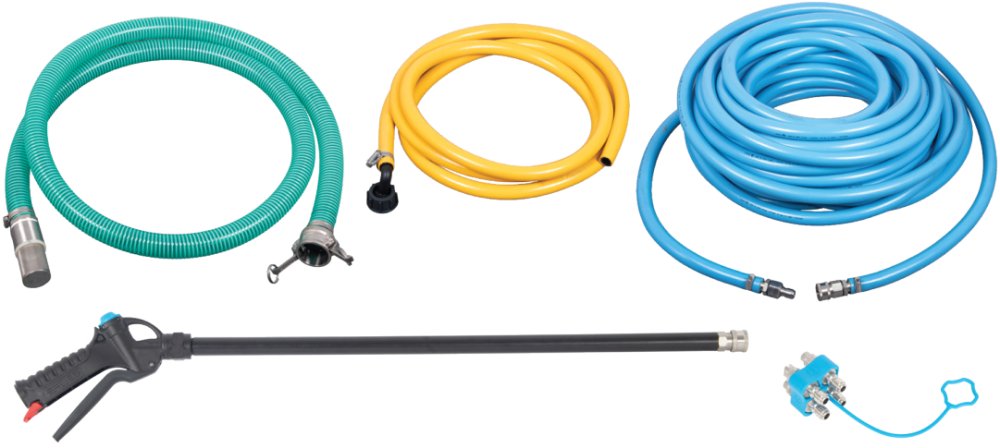

Included are a PVC soft wash lance with quick-release nozzle holder, stainless steel QR nozzles in 0°, 15°, 25°, and 40° patterns, 25 metres of PVC delivery hose with stainless QR couplings, and a 3-metre heavy-duty suction hose with filter plus return-to-tank bypass.
Mobile Powder-Coated Frame
The washer mounts on a powder-coated steel trolley with 13-inch wheels for easy transport across job sites. An adjustable pressure regulator allows fine-tuning of output during operation.
