The Target Power TB44-1 is a 40 kVA prime (44 kVA standby) single-phase diesel generator powered by a reliable Baudouin 4M06G44/5 engine. Housed in a soundproofed canopy with a 105L fuel tank, it features easy-connect 230V sockets, DataKom or Deep Sea control modules, and ATS compatibility. With noise levels as low as 72 dBA at 7m and a 2-year UK warranty, it’s ideal for residential or business backup.
- Power Output: 40 kVA prime, 44 kVA standby, single phase 230-240V, 50 Hz, 1500 rpm.
- Engine: Baudouin 4M06G44/5, 3-cylinder diesel with 4-year standby or 2-year prime warranty.
- Alternator: Stamford, Leroy Somer, or Target Power for reliable power delivery.
- Control Module: DataKom D500 or Deep Sea Electronics DSE6120, supports manual/remote start, USB-customizable settings.
- Sockets: 230V blue sockets (1x 63A, 1x 32A, 2x 16A) with individual breaker protection.
- Fuel Tank: 105L base tank, integrated into acoustic canopy, with engine coolant heater and battery charger.
- Noise Levels: 84 dBA at 1m, 72 dBA at 7m (no load), with residential silencer and anti-vibration mountings.
- ATS Compatibility: Supports optional automatic transfer switch for seamless mains failure operation.
Engine-Powered Performance

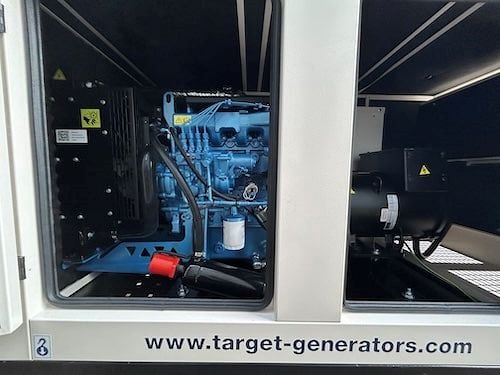

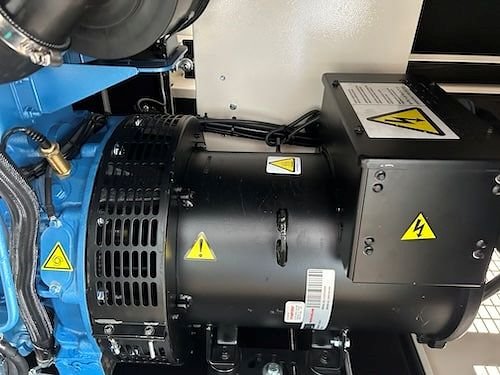

The TB44-1 diesel generator uses a 3-cylinder Baudouin 4M06G44/5 engine, which delivers a prime power rating of 40 kVA and a standby rating of 44 kVA. It operates at 50 Hz, single phase 230-240V, and 1500 rpm, paired with an alternator from Stamford, Leroy Somer, or Target Power for consistent output.
Control Module Functionality

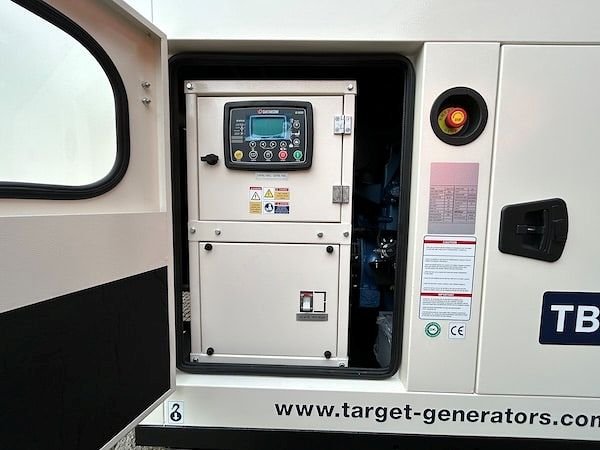

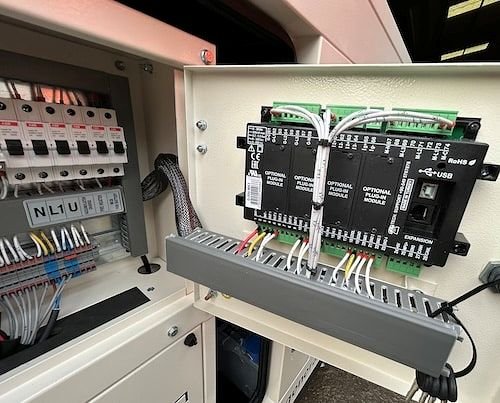

Equipped with either a DataKom D500 or Deep Sea Electronics DSE6120 control module, the generator supports manual start, remote start, and full monitoring of engine and alternator parameters. The module handles manual or automatic mains failure operation, and a USB connection allows for setting adjustments to fit various applications.
Socket Configuration for Connectivity

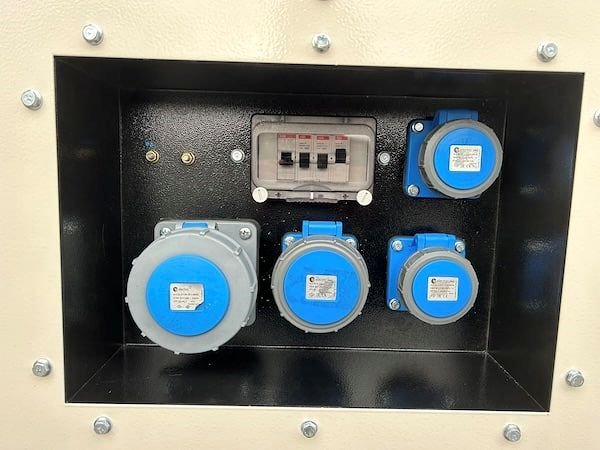

The generator includes 230V blue sockets with one 63A, one 32A, and two 16A outlets, each protected by individual breakers. This setup facilitates direct connections for machinery, equipment, and tools while maintaining safety standards.
Automatic Transfer Compatibility
The TB44-1 works with an optional automatic transfer switch (ATS) to detect mains power loss and shift the load to the generator. It also returns the load to mains power once restored, with ATS panels available separately or integrated into the unit based on specific needs.
Acoustic Enclosure Design
Housed in a soundproofed canopy made from thick galvanized steel with a powder coat finish, the generator achieves noise levels of 84 dBA at 1 meter and 72 dBA at 7 meters under no load. The canopy mounts on a welded steel base frame with anti-vibration elements and features lockable doors for security.
Fuel and Standby Readiness
The unit includes a 105L base fuel tank within its acoustic canopy, along with standard fittings like an engine coolant heater, battery charger, and circuit breaker. This configuration ensures the generator remains prepared for standby use in residential or business settings.
Silencer Compartment Setup

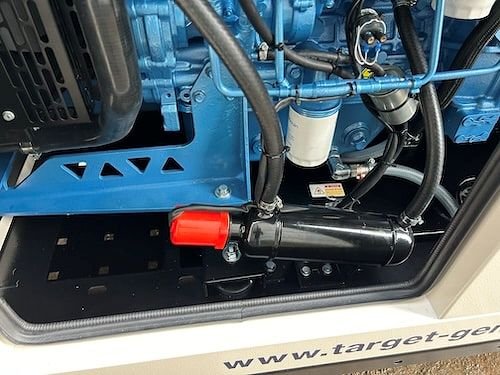

A residential silencer resides in a dedicated compartment inside the canopy, contributing to reduced noise output. It comes with a rain cap to shield against weather elements, enhancing the overall durability of the exhaust system.
Warranty Provisions
The TB44-1 carries a UK nationwide 2-year standby warranty, while the Baudouin engine extends coverage to 4 years for standby applications or 2 years for prime use. These terms apply to the generator's role in backup power scenarios.
