The Target Power TP33 is a three-phase diesel generator providing 33kVA (26kW) standby power and 30kVA (24kW) prime power. It is powered by a Perkins 1103A-33G engine paired with a MeccAlte or Stamford alternator. Control is managed by a Deep Sea Electronics DSE4520 controller, and the unit is built using high-quality UK/EU components
Key Features
- Reliable Perkins Power: Delivers a consistent 30 kVA prime output and 33 kVA standby output at 1500 RPM.
- Intelligent Control: Features the DSE4520 manual control module as standard, providing clear monitoring and protection.
- Safety & Security: Built with lockable canopy doors, an external emergency stop button, and fully guarded internal components.
- Superior Maintenance Access: Designed with large access doors, colour-coded wiring, and a roof-mounted radiator filling point for easy servicing.
- Long-Run Capacity: Equipped with a robust fuel tank designed to support a minimum of 8 hours of continuous operation.
| Specification | Details |
|---|
| Prime Power |
30 kVA / 24 kW |
| Standby Power |
33 kVA / 26 kW |
| Engine Model |
Perkins 1103A-33G (Naturally Aspirated) |
| Cylinders / Displacement |
3 Cylinder / 3.3L |
| Cooling System |
Water Cooled |
| Fuel Consumption (100% Load) |
7.3 Litres per Hour |

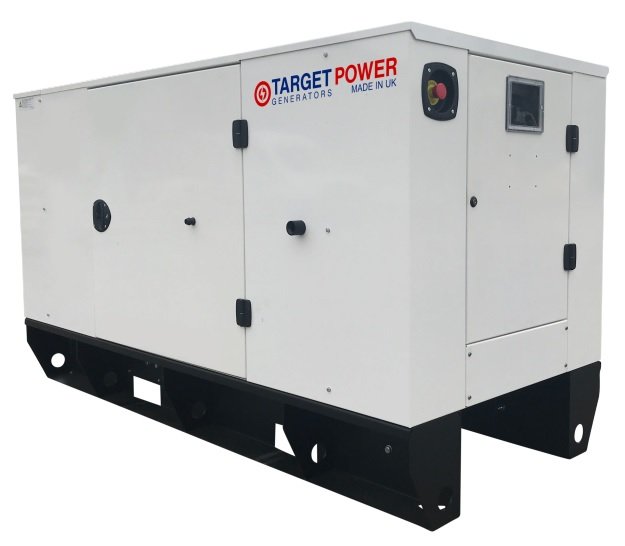

| Canopy Dimensions (L x W x H) |
2,240mm x 1,038mm x 1,378mm |
| Canopy Weight |
1,126 kg |

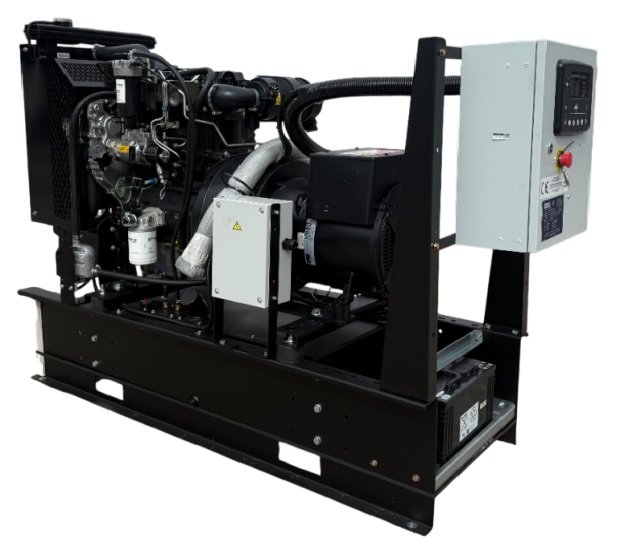

| Open Type Weight |
865 kg |
| Noise Level (7M @ 75% Load) |
76 dBA |
Note: For UK applications, units are supplied with an integrated bunded base fuel tank to meet environmental and safety regulations.
