Belle GPX5000 Honda Powered 5kva / 4kw Stackable Generator

Belle GPX5000 Honda Powered 5kva / 4kw Stackable Generator
  • Belle GPX5000 Honda Powered 5kva / 4kw Stackable Generator
  • Belle GPX5000 Honda Powered 5kva / 4kw Stackable Generator
  • Belle GPX5000 Honda Powered 5kva / 4kw Stackable Generator
  • Belle GPX5000 Honda Powered 5kva / 4kw Stackable Generator
  • Belle GPX5000 Honda Powered 5kva / 4kw Stackable Generator
  • Belle GPX5000 Honda Powered 5kva / 4kw Stackable Generator

This 5kva / 4kw (3.6kw continuous) generator from Belle is powered by a Honda GX270 petrol engine and is stackable. It has 2 x 110v 16A, 1 x 240v 16A and 1 x 110v 32A sockets. The engine and alternator are protected from physical damage by the frame and the electrics have full overload protection. Ideal for commercial and hire applications.

MPN: G5001S
Our Price: £966.03 excl VAT
Our Price: £966.03 inc VAT
Free Delivery

Due to production delays, most Belle items are taking up to 5-10 working days for delivery (normally 2-5 working days). Most Belle orders are made to order and sent directly by Altrad Belle. Please contact us to check availability and for faster delivery options. Deliveries to Scottish Highlands may cost extra for this item.

Belle GPX5000 Honda Powered 5kva / 4kw Stackable Generator

This 5kva / 4kw (3.6kw continuous) generator from Belle is powered by a Honda GX270 petrol engine and is stackable. It has 2 x 110v 16A, 1 x 240v 16A and 1 x 110v 32A sockets. The engine and alternator are protected from physical damage by the frame and the electrics have full overload protection. Ideal for commercial and hire applications.

  • Robust large diameter frame with built-in Engine / Alternator.
  • Protection belly plate to aid use on soft ground (N/A to Wheeled version).
  • Professional Honda engine with recoil start.
  • Low engine oil cut-off.
  • High quality, heavy-duty NSM Alternator.

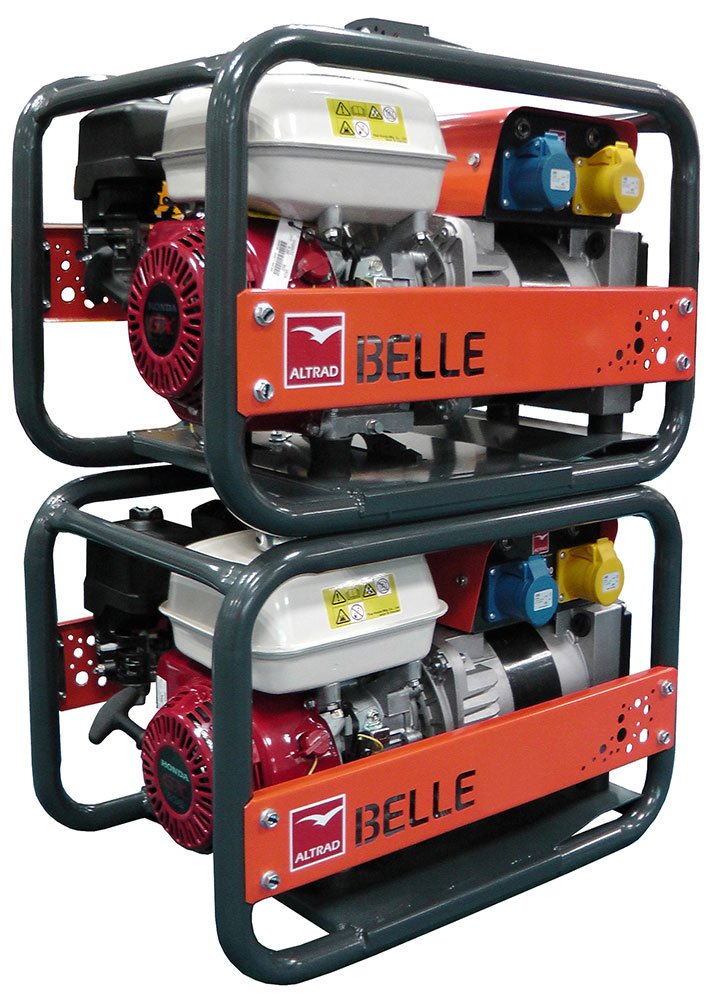

  • Stackable frame ('Patent Pending') with single point lifting to reduce enviromental impact and minimize manual handling risk. Complete with securing pin for added safety (N/A to Wheeled version).
  • Engine / Alternator side impact protection.
  • Durable screw-in sockets.
  • Metal covered fuse box.
  • Over-sized 4-point Anti-Vibration mounts.
  • Rental-proof, robust, steel electrical enclosure.

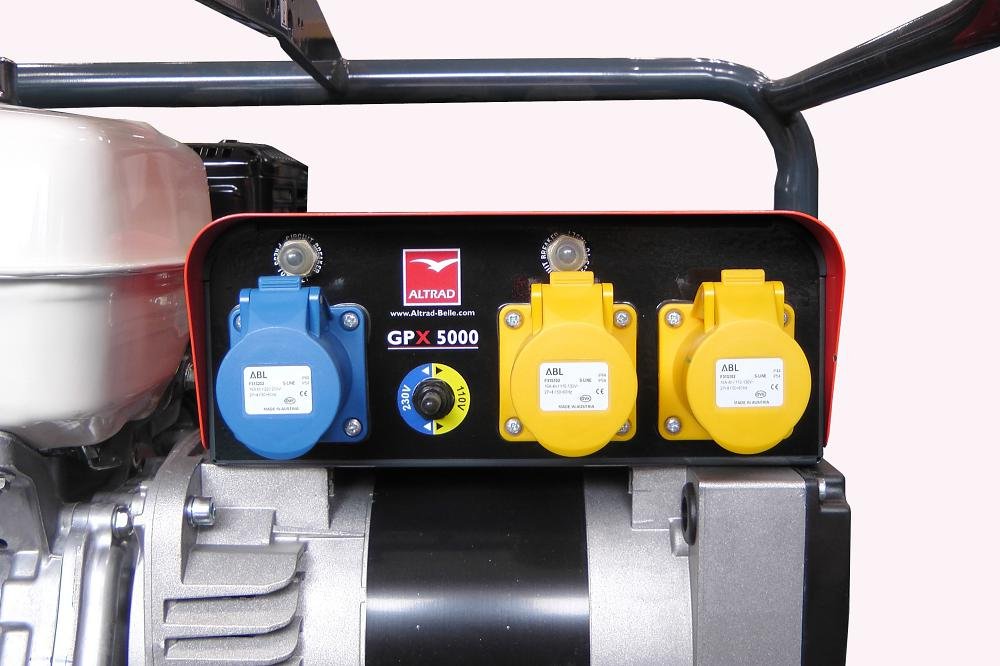

  • Selectable 110v (16A and 32A) or 230v.
  • System breakers for 110v & 230v supplies.
  • Specifically designed for hire and rental markets.
  • Accessible service points.

Specification

Fuel Capacity 5.6L
Engine Power @ 3000rpm 6.2hp / 4.6kw
Rating @ 0.8 p/f 4kVA
PRP Rating 4.0kw
COP Rating (Continuous) 3.6kw
No of sockets 110v 16a x 2, 110v 32A and 230v 16a x 1
Frequency 50Hz
Alternator NSM K100 Range
Maximum Current @ 110v 36.4
Maximum Current @ 230V 17.4
Running hours at @ 90% of COP 2.8Hrs
Sound Power Level LWA 96
Dimensions Width x Height x Length 512mm x 595mm x 728mm
Weight 67kg
